40FT High Cube Open Side Container
Categories: 40ft Shipping Containers, Open Side Shipping Containers
Description

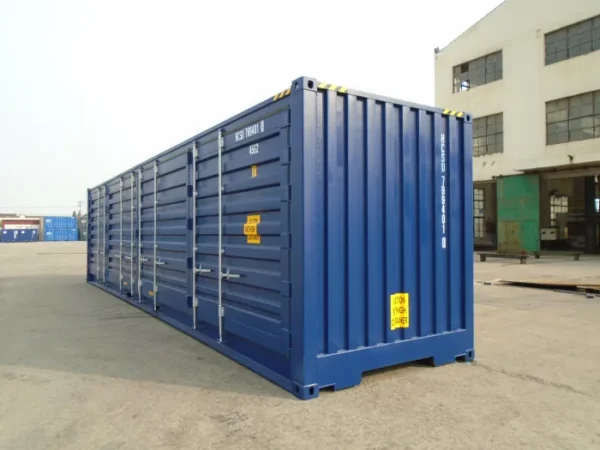

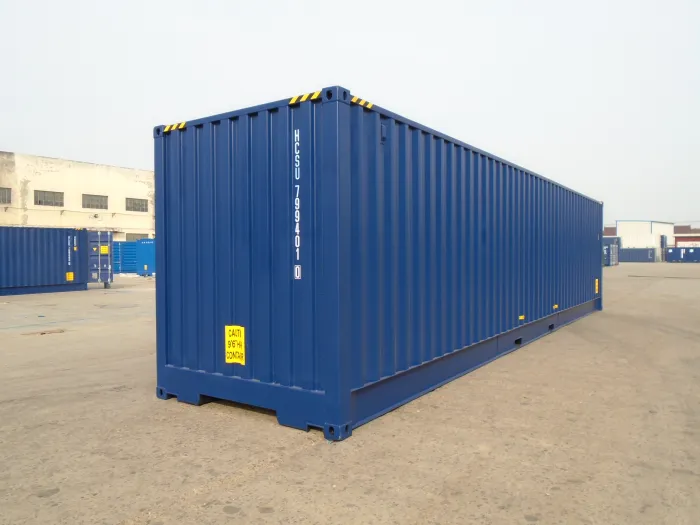

40FT High Cube Open Side Container
Full-Length Access. High-Cube Efficiency. Industrial Strength.
The 40FT High Cube Open Side Container—also known as a Full Side Access Container—offers maximum cargo flexibility with both standard rear cargo doors and full-length side-opening access. This container is engineered for operations requiring wide-format or fast-loading access, making it a standout choice for logistics, construction, modular design, and industrial applications.
Manufactured with CORTEN anti-corrosive steel, marine-grade plywood flooring, and forklift-compatible features, this unit is ISO and CSC certified for international shipping and intermodal transport.
Key Structural Features

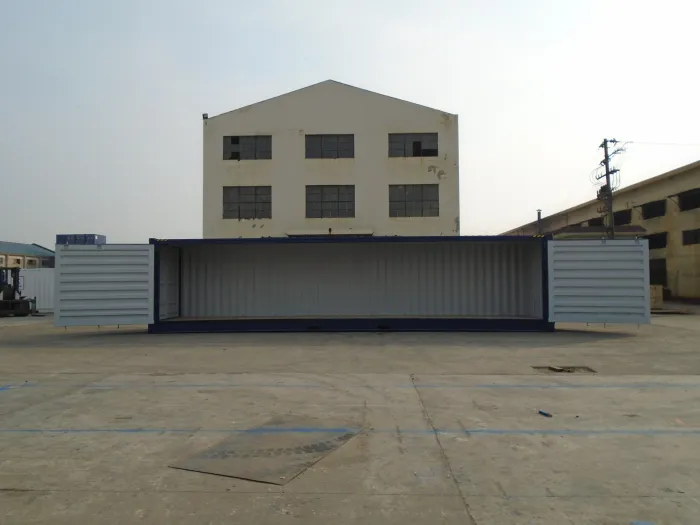

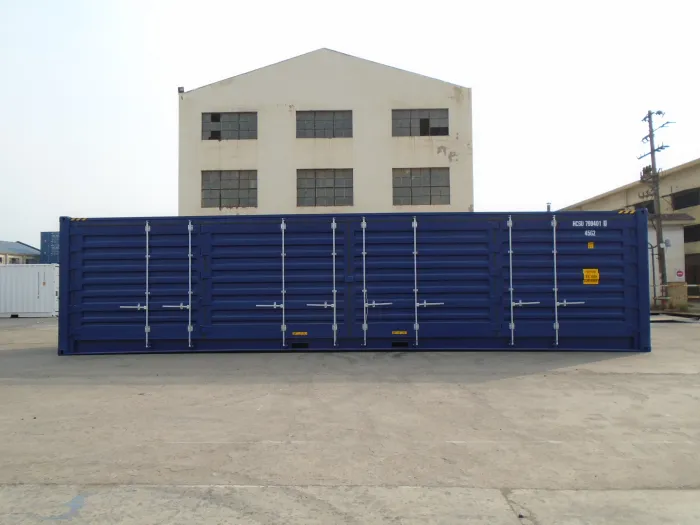

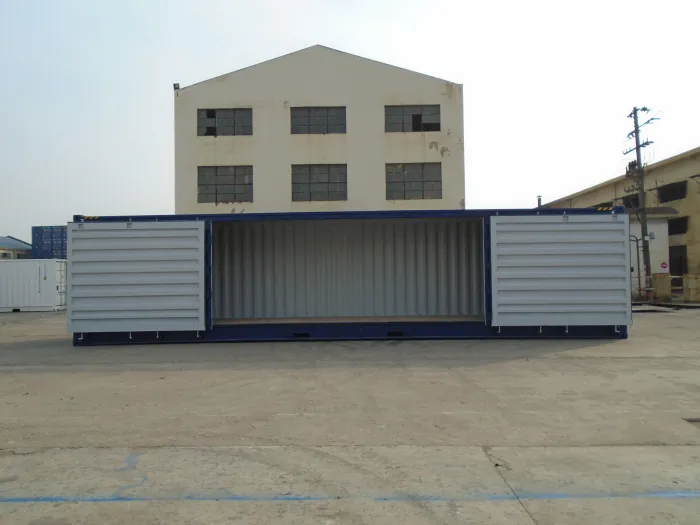

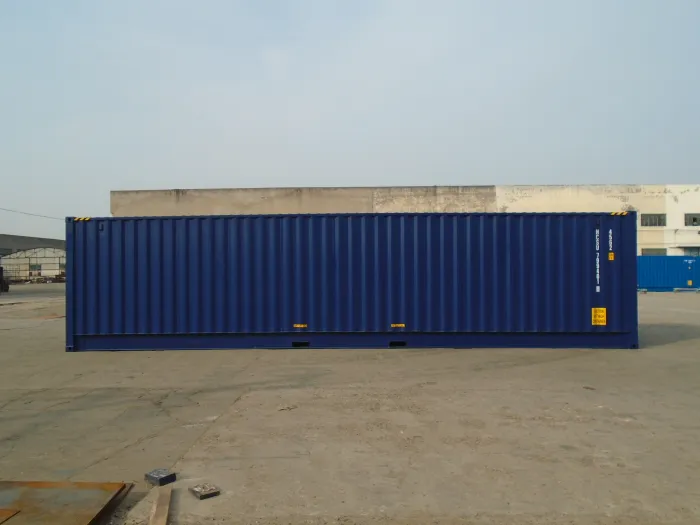

- Full-Length Side Doors: 11,556 mm wide by 2,311 mm high for complete lateral access

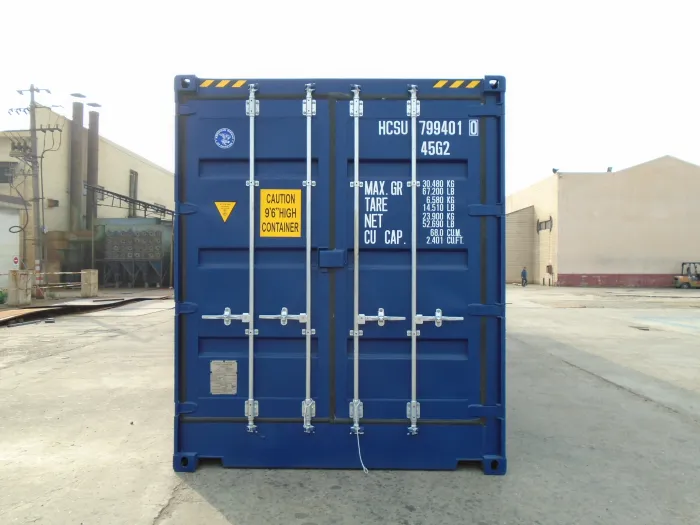

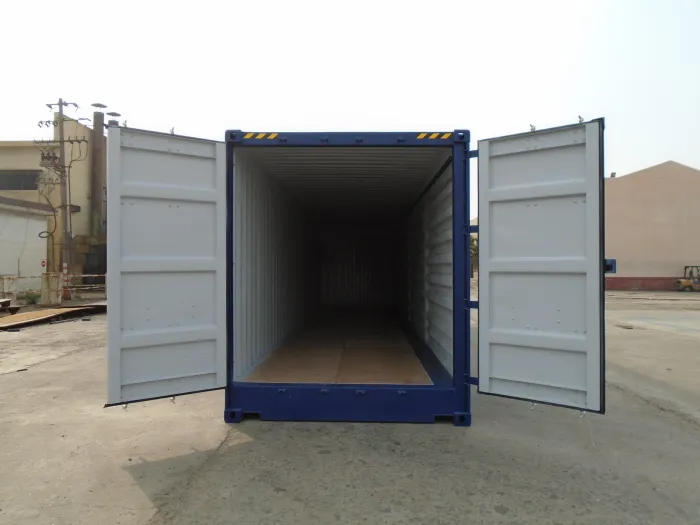

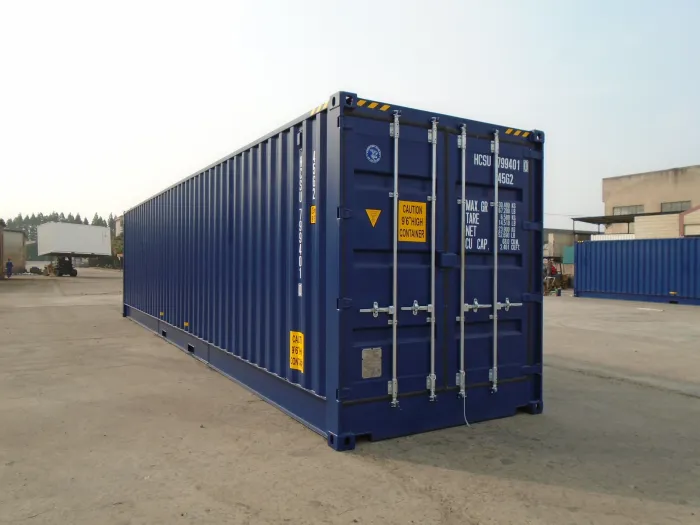

- Rear Doors: Standard double cargo doors with lockable handles
- Material: Weather-resistant CORTEN steel – high-tensile, corrosion-resistant
- Flooring: 28mm thick marine-grade plywood (19-ply), forklift-compatible
- Ventilation: Dual air vents for passive airflow
- Security: Integrated steel lockbox for both side and rear padlocks
- Handling: Dual forklift pockets for smooth repositioning
- Stacking Ready: ISO corner castings and roof panel reinforcements
- Paint Finish: RAL 5013 (Blue) or customised RAL options available
Dimensions & Weight
| Specification | Metric (mm) |
|---|---|
| External Dimensions (L×W×H) | 12,192 × 2,438 × 2,896 |
| Internal Dimensions (L×W×H) | 12,032 × 2,430 × 2,471 |

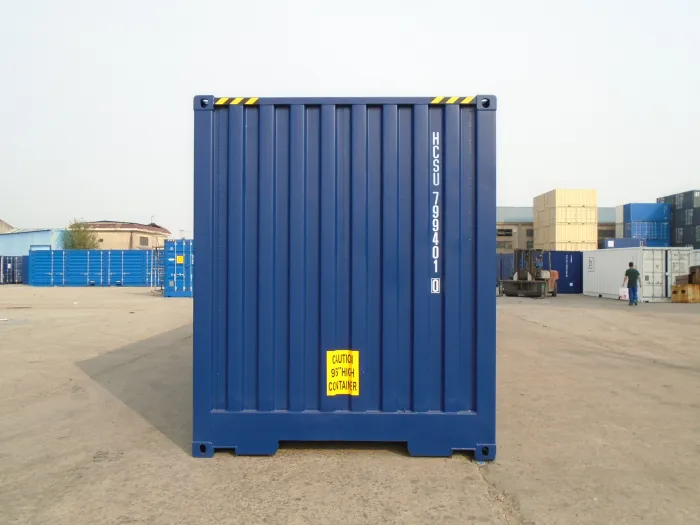

| Rear Door Opening (W×H) | 2,358 × 2,388 |
| Side Door Opening (W×H) | 11,556 × 2,311 |
| Internal Volume | 72.20 m³ |
| Tare Weight | 6,580 kg |
| Max Payload | 23,900 kg |
| Gross Weight Rating | 30,480 kg |
Engineering Notes
- Hinged side panels reinforced with vertical locking bars for durability under repeated operation.

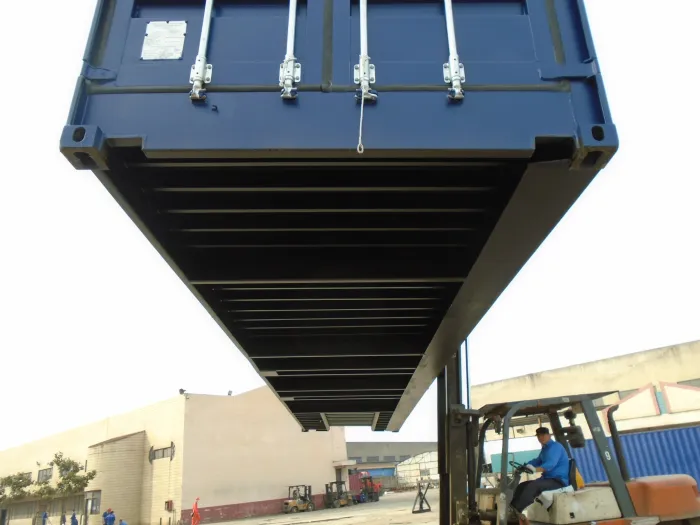

- Marine-grade floorboards secured to cross members for superior structural integrity.

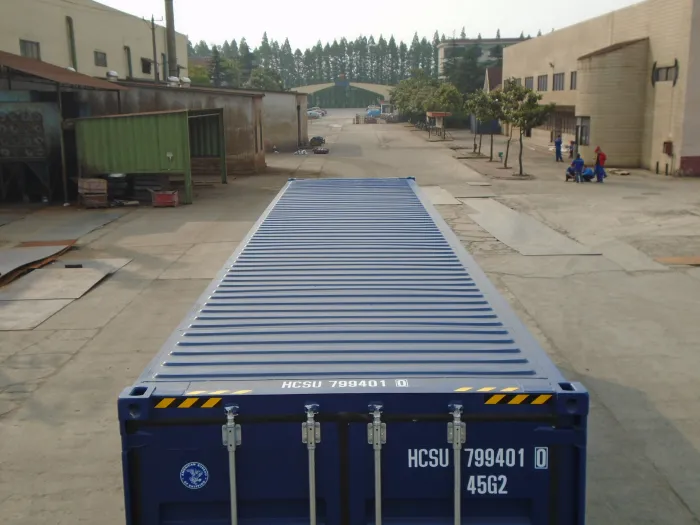

- Corrugated wall and roof design enhances stacking strength and impact resistance.
- ISO-corner castings ensure compatibility with crane lifting, stacking, and transport hardware.
- Fully inspected and certified for global shipping or static use under ISO and CSC regulations.
Functional Use Cases
Industrial & Mechanical Storage:
Simplifies handling of elongated machinery, pipelines, or skids through wide-format access.
Construction Deployment:
Supports project phasing by allowing sectional loading, rapid material swaps, and interior access from either side.
Event Logistics & Exhibitions:
Converts into walk-in showrooms or mobile displays with open-panel configurations.
Agricultural & Freight Handling:
Ideal for storing crates, pallets, feed units, or packaging stock requiring fast-access rotation.
Modular Design Conversions:
Lends itself to creative builds such as mobile clinics, cafés, pop-up stores, or wide-access workshops.
Compliance & Inspection
All 40FT High Cube Open Side Containers undergo rigorous inspection, including:
- Door hinge alignment and locking function
- Side panel reinforcement checks
- Floor ply integrity and fastening points
- Ventilation functionality
- ISO and CSC compliance tagging
Units are logged and photographed prior to dispatch. Internal customisations and colour selections are available on request.
