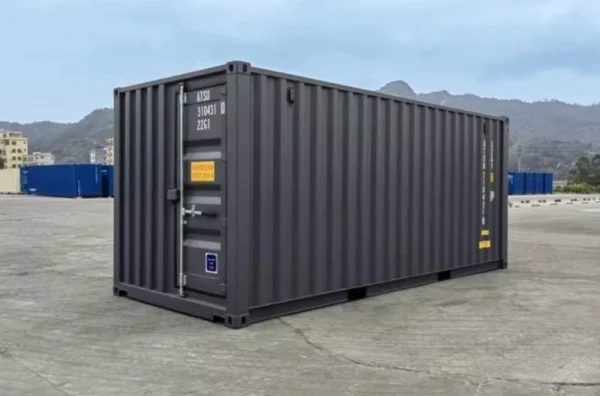

20FT New Tri-Door Shipping Container
Multi-Access. One-Trip. Built to Outperform.
The 20FT New Tri-Door Shipping Container is a purpose-built, factory-fresh one-trip unit engineered for operations requiring flexible access and compartmentalised use. With three integrated cargo doors—including a front access door and standard double rear doors—it offers unmatched convenience for loading, sorting, and zoning cargo, equipment, or supplies in fast-paced environments.
Built from CORTEN anti-corrosive steel and reinforced for both intermodal transport and on-site use, this container blends strength, security, and spatial versatility into a compact and efficient form. Designed to perform under pressure, it’s the go-to solution for industries requiring smart access without compromising on durability or compliance.
Core Specifications
Container Type: 20FT Tri-Door – New (One-Trip)
Material: CORTEN anti-corrosive steel frame and walls

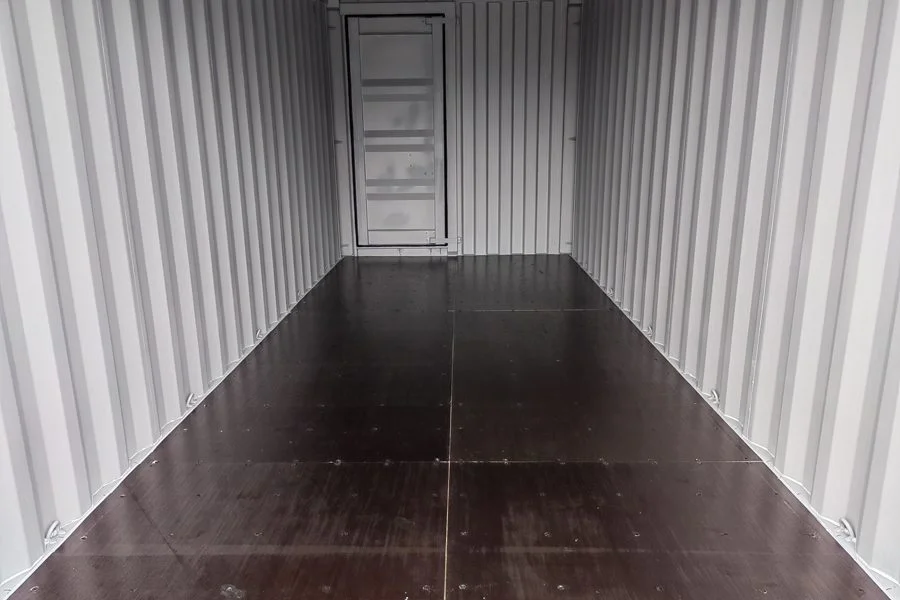

Flooring: 28mm thick, 19-ply marine-grade plywood
Ventilation: 8 weatherproof vents (4 on each side)
Security: Lockboxes on all doors for padlock compatibility
Handling Features: Forklift pockets for yard movement
Stacking & Crane Access: ISO-compliant corner castings
Front Wall Feature: Welded steel ladder for rooftop inspection or future modification
Door System Details
| Access Point | Details |
|---|---|

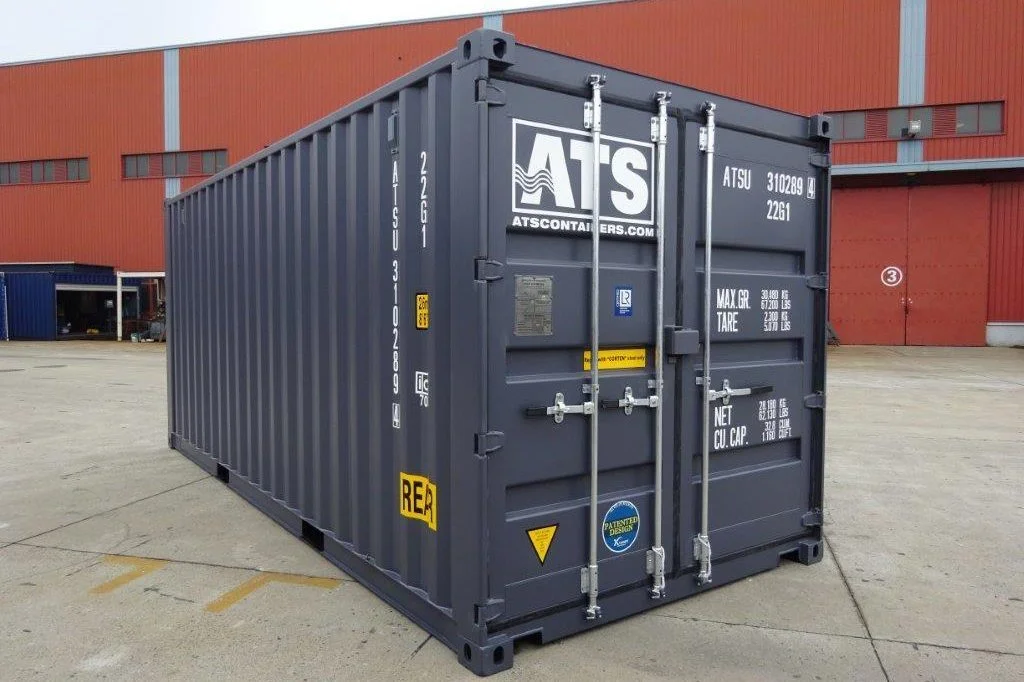

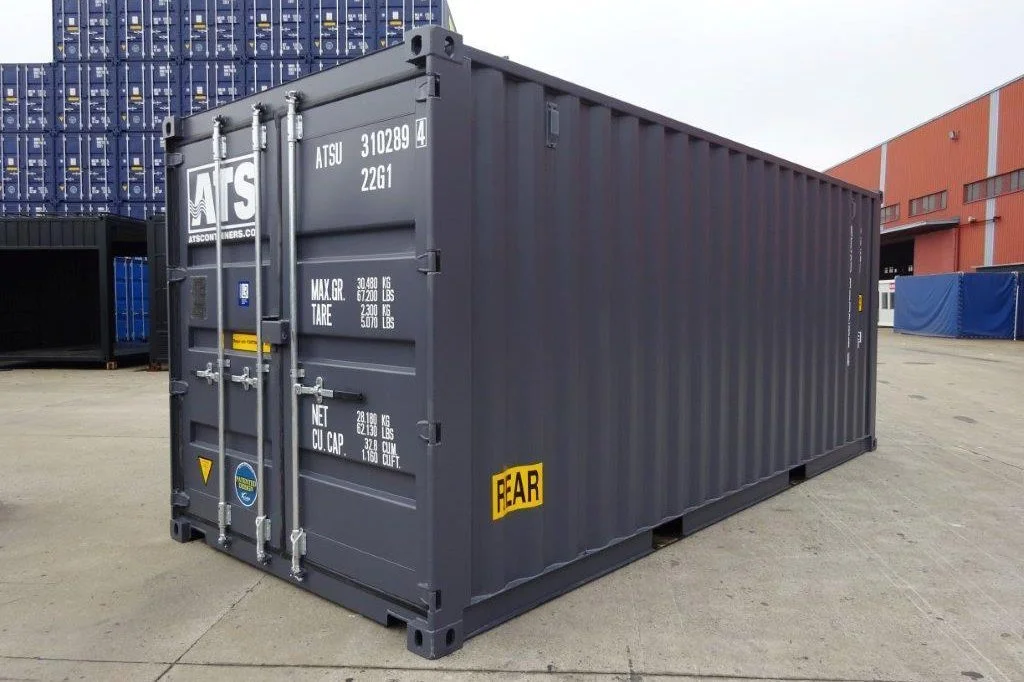

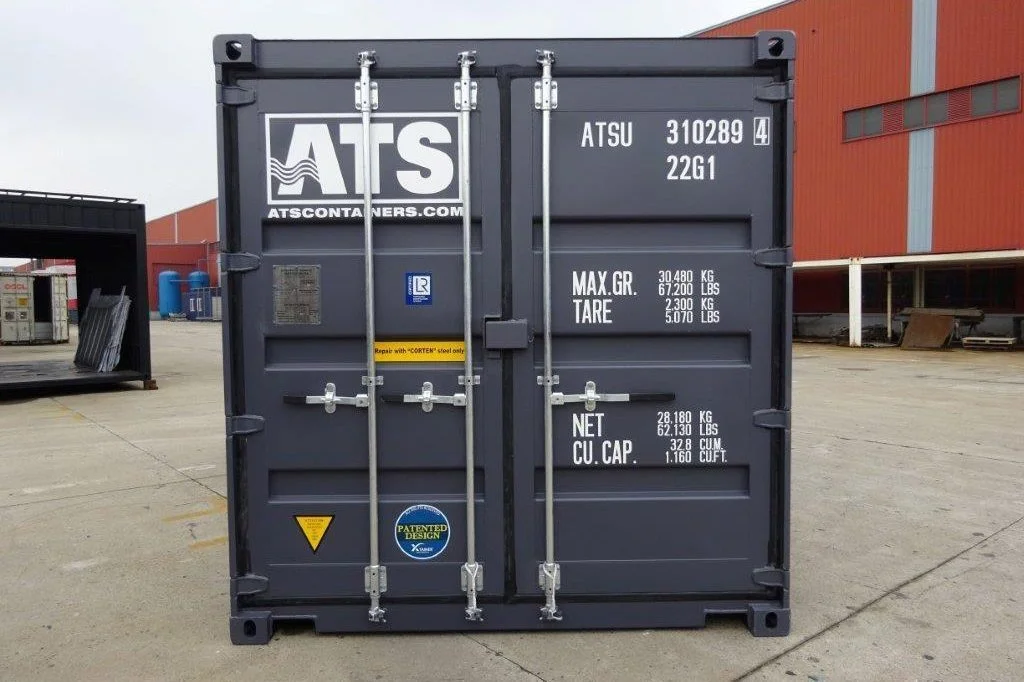

| Rear Doors | Standard double cargo doors with 36” locking bars |

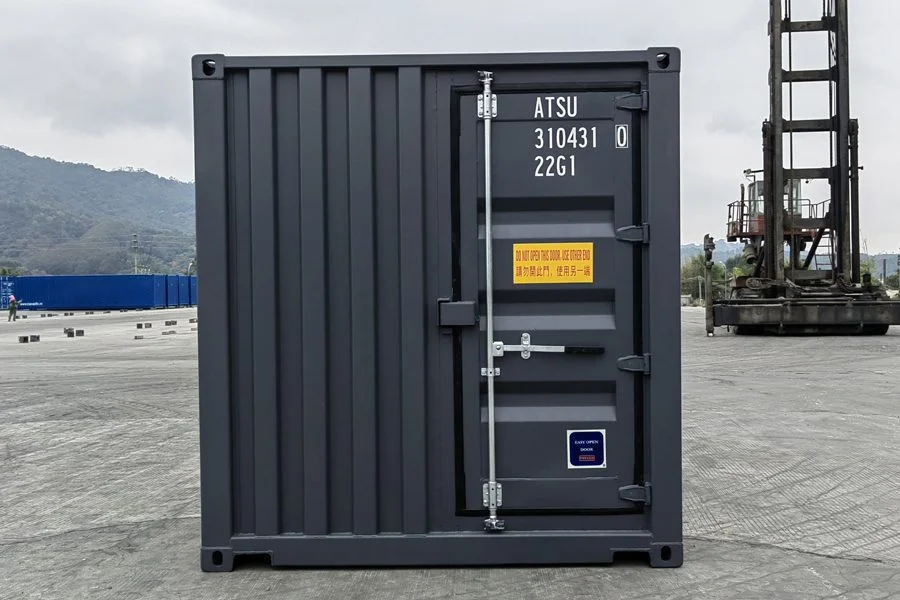

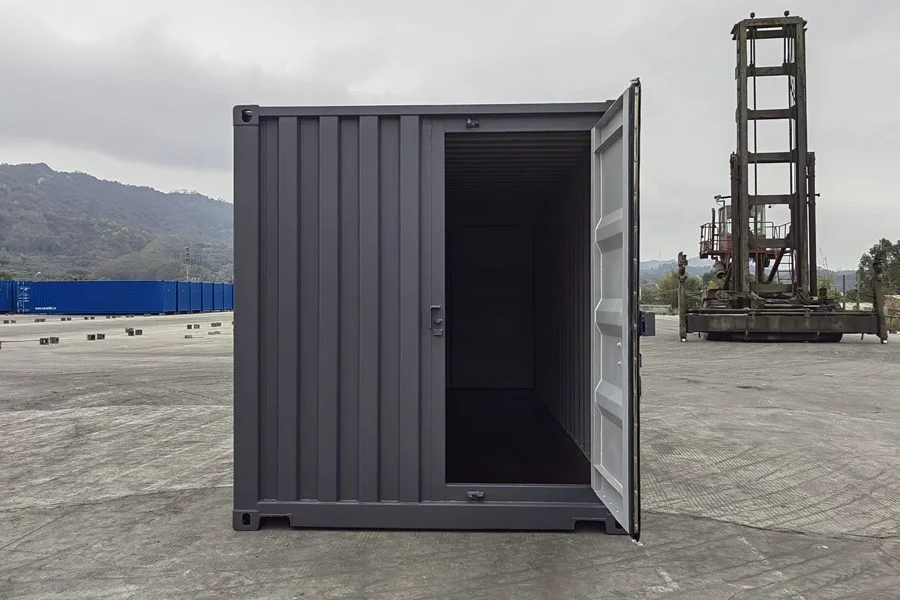

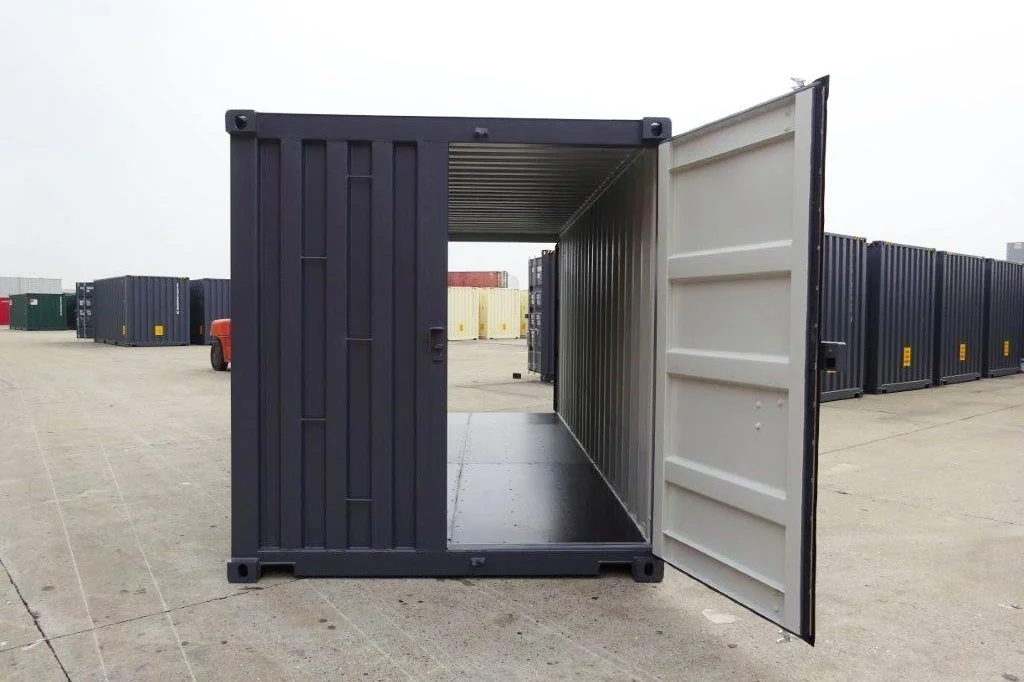

| Front Door | Single swing door (approx. 46” width) with full lock system |
| Locking Security | Welded lockboxes (factory-installed) on all access points |
This configuration supports easy two-directional loading, mid-storage access, and streamlined item separation—without the need to unload everything for access.
Dimensions & Load Capacity
| Attribute | Measurement |
|---|---|
| External Dimensions | 20’ L x 8’ W x 8’6” H |
| Internal Dimensions | 19’6” L x 7’8” W x 7’10” H |
| Rear Door Opening | 7’8” W x 7’5” H |
| Front Door Opening | 46” W |
| Tare Weight | 5,070 lbs |
| Max Payload Capacity | 62,130 lbs |
| Gross Weight Rating | 67,200 lbs |
Functional Engineering Features
- Dual-entry access enables multi-zone storage management or phased loading.
- Welded lockboxes provide tamper-resistant protection at all three access points.
- Marine-grade plywood offers high compression strength and moisture resilience.
- Integrated 8-vent layout ensures passive airflow and condensation control.
- Forklift base pockets support movement across uneven or confined workspaces.
- Ladder-accessible roof increases long-term value for modular or converted use.
Ideal Applications
Construction & Civil Infrastructure:
Supports jobsite phase separation, equipment rotation, and progressive loading from either end.
Warehousing & Inventory Logistics:
Facilitates fast pull-and-pick processes, reducing time spent accessing specific stock.
Mobile Workspaces & Conversion Projects:
Great base for office, pop-up retail, or off-grid housing with pre-built multi-access functionality.
Vehicle or Equipment Storage:
Easily accommodates wheeled units, utility machinery, or skid-mounted assets with front-end roll-in access.
Condition Overview
Every unit is sold in new, one-trip condition, meaning it has completed a single voyage from the manufacturing facility and retains nearly flawless structural and visual quality. All containers are inspected for:
- Door functionality and gasket integrity
- Lockbox condition on all entry points
- Panel uniformity and frame integrity
- Forklift pocket accessibility
- Vent alignment and air circulation
Full condition photos, measurement confirmations, and compliance certificates (ISO/CSC) are available upon request. This container is ready for immediate export, modification, or long-term deployment.
