20FT High Cube Open Side Container
Categories: 20ft Shipping Containers, Open Side Shipping Containers
Description

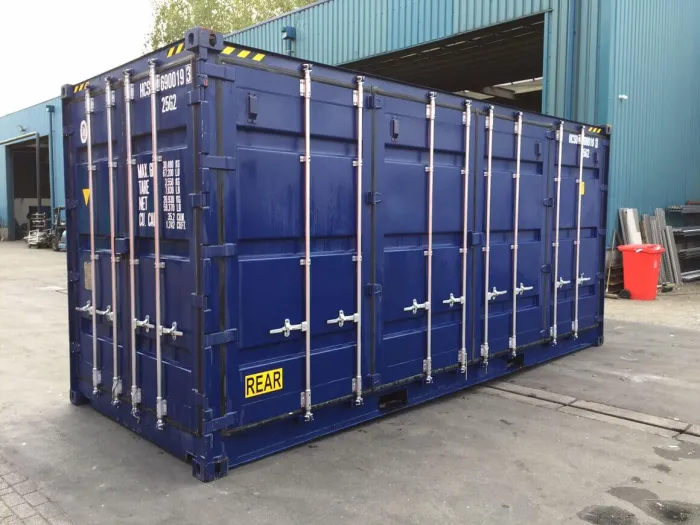

20FT High Cube Open Side Shipping Container
Maximum Access. Maximum Flexibility.
The 20FT High Cube Open Side Shipping Container is designed for maximum utility in environments where full-length access and extra internal clearance are essential. This unit combines the strength and stackability of standard ISO containers with added accessibility—offering both traditional rear double doors and full-length side-opening panels.
Constructed from CORTEN anti-corrosive steel, this container is engineered to perform under extreme conditions, whether in transport, on a worksite, or used as part of a conversion build. It comes CSC-certified and is available in RAL5013 Cobalt Blue, with additional color options upon request.
Key Features

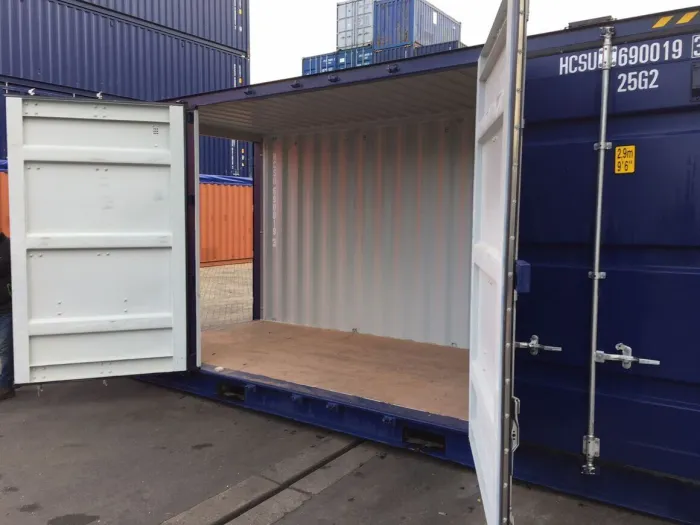

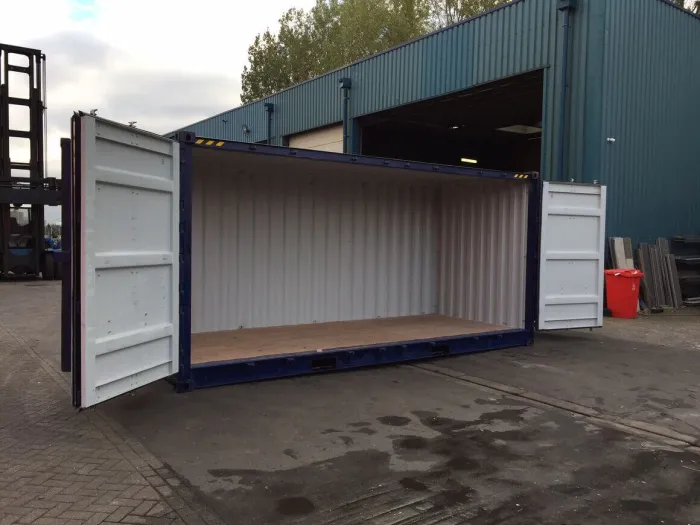

- Full-Length Side Access: Wide-opening side panels measure 5.702 m x 2.494 m for unrestricted loading/unloading
- High Cube Height: Offers approx. one foot of extra vertical space (2.607 m internal height)
- Material: CORTEN steel – designed to resist corrosion, weather, and long-term wear
- Flooring: 28mm marine-grade plywood with high moisture resistance
- Security: Fitted lockbox and high locking gear for added protection
- Handling: Reinforced forklift pockets for efficient site movement
- Ventilation: Equipped with standard air vents for airflow and humidity reduction
- Finish: Default RAL5013 Cobalt Blue; other RAL colour finishes on request
- Certification: CSC-certified – suitable for global shipping, rail, and stackable storage
Technical Specifications
| Specification | Value |
|---|---|
| External Dimensions (L×W×H) | 6.058 m x 2.438 m x 2.896 m |
| Internal Dimensions (L×W×H) | 5.898 m x 2.287 m x 2.607 m |

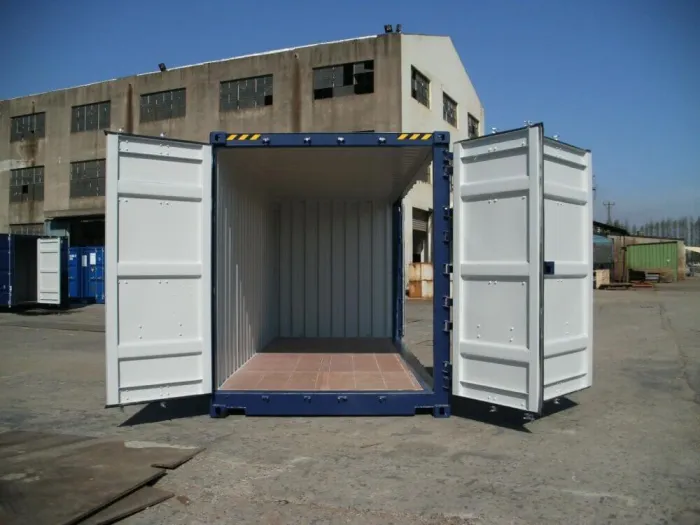

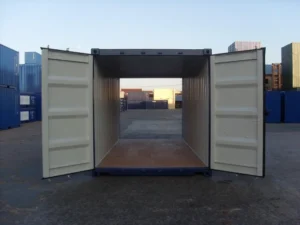

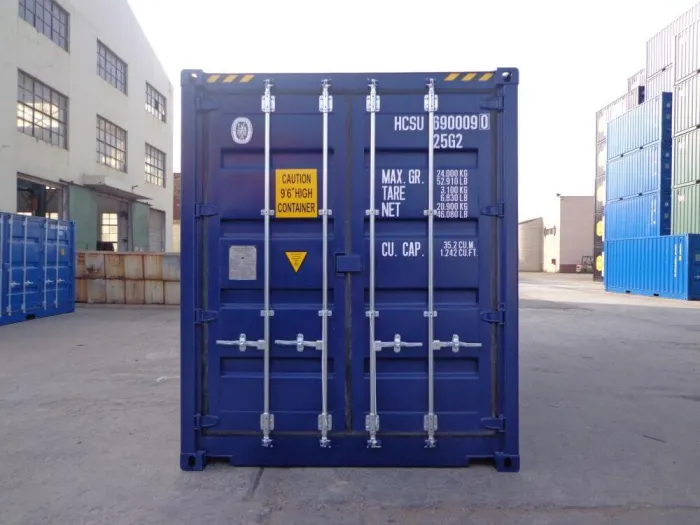

| Rear Door Opening (W×H) | 2.114 m x 2.494 m |
| Side Door Opening (W×H) | 5.702 m x 2.494 m |
| Tare Weight | 3,100 kg |
| Max Payload | 20,900 kg |
| Gross Weight Rating | 24,000 kg |
| Internal Volume | 35.20 m³ |
| Forklift Pockets | Yes |
| Stackable | Yes |
Structural Notes
- Side-opening doors include heavy-duty hinges and lock rods for secure, modular operation
- Rear access maintains classic container entry while the side doors offer superior load zoning
- Marine-grade flooring resists delamination, wear, and forklift abrasion
- Reinforced forklift pockets enable safe loading and relocation across sites
- Built for multi-modal transport—rail, sea, or static ground deployment
Ideal Use Cases
Warehousing & Distribution:
Facilitates staged pallet access or the storage of long-format inventory such as timber, piping, or racking systems.
Construction & On-Site Projects:
Enables quick retrieval of tools, scaffolding, and building supplies—even in confined loading areas.
Event & Festival Logistics:
Streamlines the staging of sound gear, lighting rigs, and other critical infrastructure during outdoor deployments.
Retail & Conversion Builds:
Ideal for open-sided pop-up displays, food truck bases, or modular office/workshop transformations.
Compliance & Dispatch
All containers are:
- CSC certified for export and intermodal movement
- Fully inspected for structural performance, door seal integrity, and lock function
- Available for customisation, including paint finishes, shelving, partitioning, and more
Standard delivery across Australia occurs within 3–7 business days, depending on inventory location and custom order details.
